Inserting and Formatting a Table with a Formula in MS Word

I was recently teaching a MS Word workshop and ran out of time to teach about inserting a table, so here is that lesson.  I was going to use it as an introduction to Excel, with a subtitle: why-tables-are-easier-in-Excel-than-Word.  Sometimes, though, you just need a tiny table in the middle of your document without inserting a spreadsheet, so Microsoft has included some basic table functions in Word.

First, let’s define a table using spreadsheet terms.  This will help when we transition to Excel. A table is a grid of cells laid out in rows and columns.  Rows go across horizontally and columns go up and down vertically. Memorize that while I wait.

Insert and Create your Table

Ready, now place your cursor where you want the table.  You’ll be able to move it later, so just give it a good guess for now.

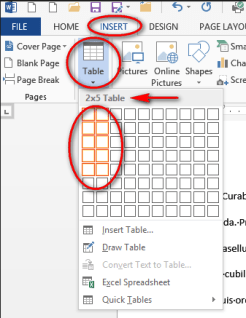

On the Insert tab>Tables section>select the drop-down arrow below Tables. The Insert Table window menu will appear.  Drag your cursor through the squares to select your number of cells in rows and columns.  For this exercise, use two columns and five rows.  Word automatically puts in you “Drag” mode, so you don’t have to hold down the mouse button.  Drag through two horizontal squares (columns) and five vertical squares (rows) as shown.

The arrow in the illustration points to the text above the grid.  It will change from “Insert Table” to a description of your table, 2×5 Table, when you have our chosen layout selected. When you click on the grid square two columns and five rows down, Word inserts a two column, five row table in your document.

All columns are spaced evenly between the current margins and the rows are spaced evenly based on your current line spacing.

Add Text and/or Numbers

Let’s add data to your Table.  You may click, tab, or cursor to go from cell to cell.  (A not-so-subtle reminder that numbers have to be checked for typos.  Spell-check doesn’t help here.)

I recently moved to a new town, so I’m going to use US Census Bureau population estimates from the neighboring communities.  Just type the information, starting with a descriptor in the top cells; we’ll format it later.

2013 Est Population
Prescott Valley
Chino Valley

Formatting your Table with Table Styles

Now let’s make it easier on the eyes with some formatting.  When making changes to the format of your entire table, always select the table first.  When selected, a small “Move” arrow group will appear on the top left corner.   Select your table, then on the Home tab>Styles section> select No Spacing to get rid of any strange formatting, like double-spacing.  Do this as a matter of habit.

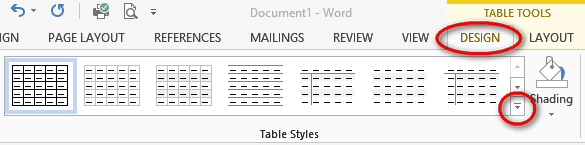

Hopefully, you noticed that when you select your table, the Table Tools tab appears with two tabs:  Design and Layout.  Let’s select a pre-designed style.  On the Tables/Design tab>Tables Styles section>click the more choices drop-down arrow.   Let’s pick a simple and bold style today.  Scroll down to the black header, horizontal borders, with no vertical lines inside.

Resize and Move your Table

To resize our table, select and drag the bottom right corner handle to the left until “Dewey-Humboldt” goes to two lines.  Stretch it back until it is only one line.

Now grab the “Move” arrow on the top left and drag your table to the right side of the page.  Your words will automatically wrap around it.

Align your Text or Numbers within your Table

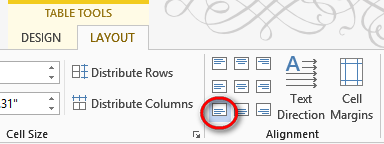

In a table, you can set each cell, each row, or each column so that is aligned up, down or center, and right, left, or center.  Click on the “City” cell.   In the Table Tools>Layout tab>Alignment section>there are nine alignment choices.  For “City,” select Align Bottom Left icon.

Numbers and their headings should always be right-aligned.  So we want the entire right-hand column aligned to the right, right?  Hover your mouse over the right-hand column until a small black down arrow appears.  That is the Select Column arrow.  Click your mouse when the arrow appears. (You may also drag through the right-hand column from top to bottom.)

Your column will be selected.  In the Table Tools>Layout tab>Alignment section>select Align Top Right icon.  Your column heading and the numbers will move to the right of the table.

Add a Totals Row with a Formula

These four towns are called the Quad-Cities, and inquiring minds want to know the total population, but we don’t want to get out a calculator.  Word has a few built-in formulas for our table.

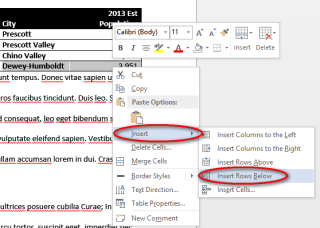

First we need to add a row for our total.  Click anywhere on the bottom row of our table.  Right-click and select Insert>Insert Rows Below. A blank row of similar size and shape will be added below.(Notice you can also delete and shift cells or rows from this right-click menu.)

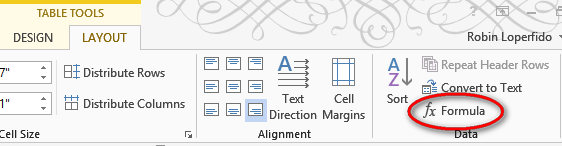

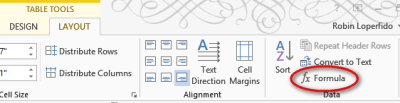

In the City column of our new bottom row, type “Quad-Cities Total.”  Tab over (or click) to the bottom row of the Population column.  In the Table Tools>Layout tab>Data section, select Formula

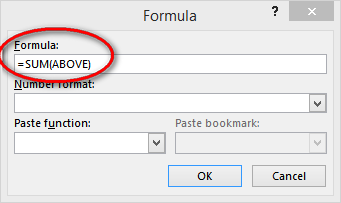

and the  Formula window will appear.  The default formula is “equal” to the “sum” of the column “above” so the formula is filled in for you as “=SUM(ABOVE).”  Click OK and the total will appear.

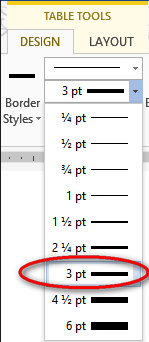

We want to emphasize the total line, so let’s change a Border in our Table.  With the table selected, go to Table Tools>Design tab>Border section.  The default border is 1/2 point.  Change the border to 3 point for an emphasis line.  Now your mouse has changed to an Ink Pen icon.  With this ink pen mouse, draw through the line above your totals row.

Review, Proof, and Update your Table

We are almost finished.  Always review your table for readability.  Does it give the information we want at a glance?  Is there any confusion?  Remember the priority is to make your information stand out.  Colors and fonts can be distracting.  Use a critic’s eye and double-check your numbers for typos.

Now, go learn Excel, it’s much more fun and faster.  Why?  If you make a correction to your numbers, your total will not automatically update in MS Word.  You need to click on the total number, right-click and select Update Field to adjust the total.  (Excel does this automatically.)
